Let's take the 2nd movie below as an example of how the movies and the
related data products come about.
Note, that I will explain
later
what these files show.
- The IDL procedure
mf_02
calls
script1
101 times, each time changing one or more parameters;
in this case a/M is changed from 0.00 to 1.00.

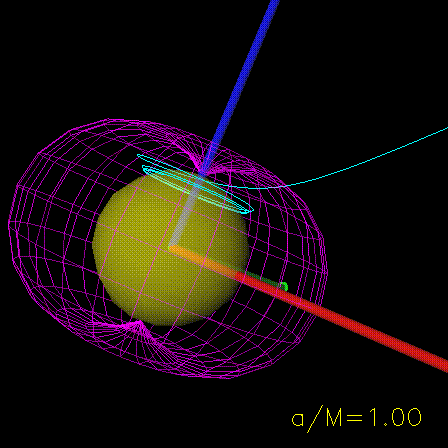

It writes 101 Inventor files, called
frame000.iv,
...,
frame100.iv.
- Explorer
is used to make 101 RGB images from the 101 Inventor 3D scenes.
In turn, the Inventor files are read using the module
ReadGeom, rendered using the module Render,
and written as an RGB image using the module WriteImg.
A For module and two AnimFile modules are used to
automate the process for all 101 frames.
Before the run is started, the user interactively positiones
the first (or last)
3D scene in Render, finding a nice view / camera setting.
This is used for all 101 files, then.
The Render window size is chosen to be 448 pixels by
448 pixels, i.e. multiple of 16.
The technical details are described further in
an appendix.
- The IDL procedure
mf_02_an
is used to annotate the images -
in this case, the text
``a/M=0.00'', ..., ``a/M=1.00'' is overlayed in the lower right
corner of the images.
It calls annotation_image
101 times, and every time the temporary annotation image is
added to the ``real'' image (which Explorer produced) using the
Silicon Graphics UNIX command add.
add has the side effect of transforming the uncompressed
RGB files that Explorer produced to RLE compressed RGB files,
reducing the file size by a factor of
4,
from 600 kbyte (
byte) to 110-160 kbyte. - The Silicon Graphics UNIX command dmconvert is used to make
an Animation coded QuickTime movie,
movie02.qt,
and an MPEG movie,
movie02.mpeg.
This is done by
this
C-shell script.
- The Silicon Graphics UNIX command togif is used to make
101 GIF images,
frame000.gif,
...,
from the RGB images.
The size of the GIF files is only 23 kbyte.
The public domain UNIX program
GIFMerge

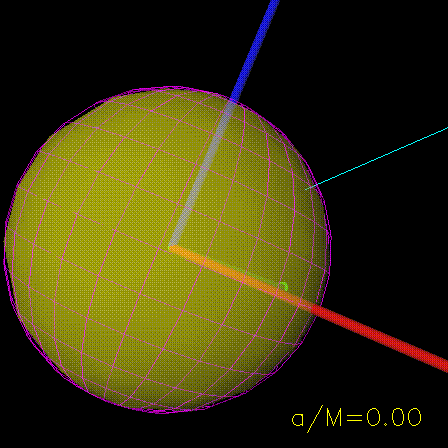

is used to make an animated GIF,
movie02_anim.gif.
This is done by
this
C-shell script.
- The UNIX program
xv
is used to make a PostScript file,
frame000.ps
from the first RGB file. The black background color is changed to
white, and the yellow annotation text color changed to black,
well suited for printing.
- All the RGB files are deleted.
- The Silicon Graphics UNIX command ivToVRML
(see here)
is used to make
101 VRML files,
frame000.wrl,
...,
frame100.wrl
from the 101 Inventor files.
This is done by
this
C-shell script.
- The Inventor and VRML files are compressed using
gzip, reducing the file size by a factor of
5. - All the visualization files in the
directory in question
take up about 12 Mbyte of disk space.
