a/M varies (3rd example)

Now we start the photon in the equatorial plane somewhat closer to the center, tex2html_wrap_inline292 = tex2html_wrap_inline1222 , but now with with initial direction perpendicular to the radial direction, and against the direction of the black hole, tex2html_wrap_inline296 = (0,0,-0.01).

We integrate the geodesic equation in 300 steps, using a step size tex2html_wrap_inline300 = 0.20

In this movie, we again vary the rotation parameter a/M from 0.00 (no rotation) to 1.00 (the most extreme rotation possible).

One sees, how the geodesics is dragged around with space-time.

The IDL script is mf_03.

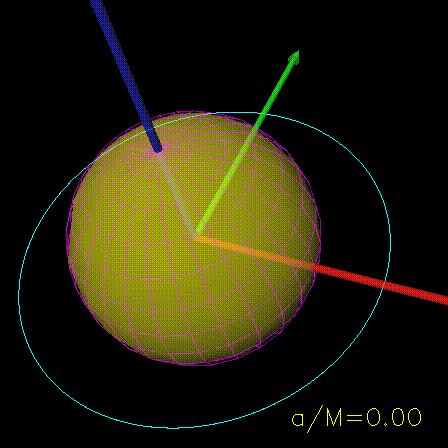

Movie: QuickTime (3.6 Mbyte), MPEG (0.5 Mbyte), or animated GIF (2.2 Mbyte)
First frame: Inventor, VRML, or GIF

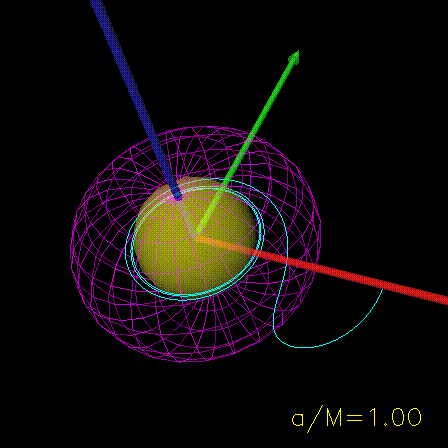

Last frame: Inventor, VRML, or GIF
All files: this directory



Web Exhibition: Null Geodesics Around a Kerr Black Hole

Bo Milvang-Jensen (milvang@astro.ku.dk)
Mon Jun 17 11:54:08 MDT 1996
